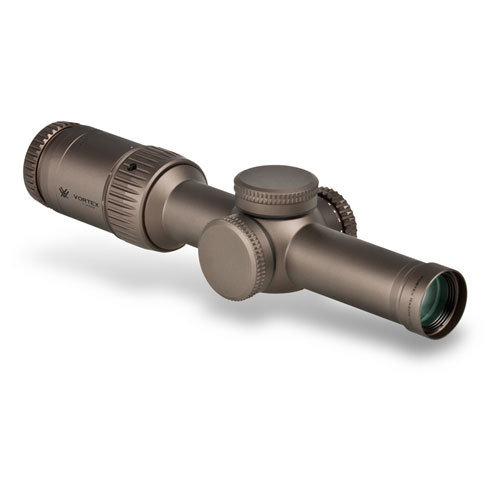

Every component, feature and performance characteristic of this riflescope is so well thought out and executed, it’s almost scary. Incredibly versatile and perfect for the AR platform, the Vortex Razor HD Gen II 1-6×24 is the ideal optical solution for short to medium-range tactical applications requiring the pinnacle of optical performance.

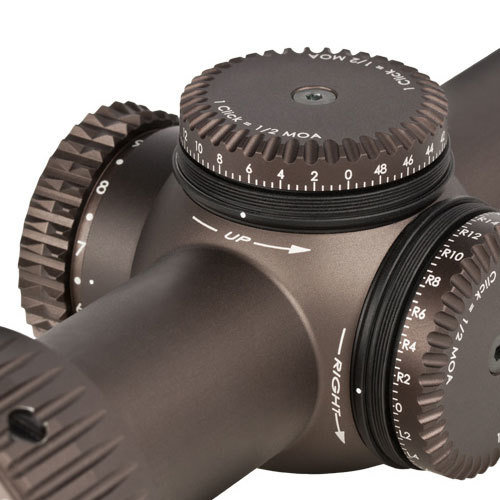

Optically, the Razor HD Gen II 1-6×24 delivers the highest level of clarity, resolution, color accuracy, light transmission and edge to edge sharpness obtainable. The ultra-forgiving eye box with generous eye relief generates a heads-up display-like sight picture for fast target acquisition and optimal dual-eye visual monitoring of the surrounding environment. Ultra sleek and built like a tank on a 30 mm aircraft-grade aluminum tube, the Razor HD Gen II 1-6×24 features an ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA of adjustment in a single turn—ensuring ample travel.
The JM-1 BDC Reticle
Simple, intuitive and fast, the JM-1 BDC reticle is exclusive to Vortex. Designed in collaboration with world-renowned competitive shooter, instructor and gunsmith, Jerry Miculek, the JM-1 reticle facilitates rapid, accurate shooting at distances from point blank to 600 yards. A true daylight-bright illuminated center dot gives shooters red dot sight functionality and ultimate close-quarters versatility. Illumination is accessed and activated via the locking illumination dial positioned cleanly on the left side of the turret housing. Features 11 intensity levels with an off-position between each setting.
Dual use for Shooting Tactical / Hunting • US Patent 7,958,665
|Objective Lens Diameter||24 mm|
|Eye Relief||4.0 inches|
|Field of View||115.2-20.5 feet/100 yards|
|Tube Size||30 mm|
|Turret Style||Low Capped|
|Adjustment Graduation||1/2 MOA|
|Travel per Rotation||50 MOA|
|Max Elevation Adjustment||150 MOA|
|Max Windage Adjustment||150 MOA|
|Parallax Setting||100 yards|
