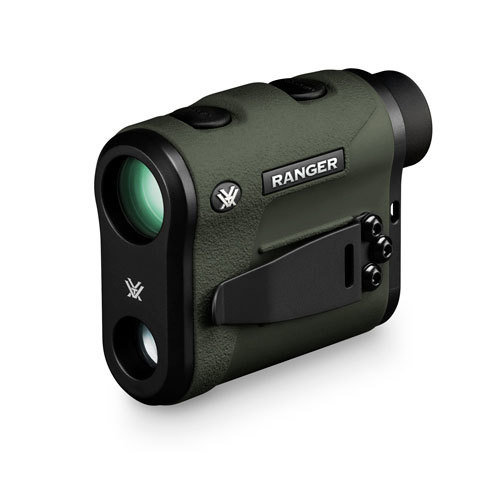

Capable of ranging targets to 1,800 yards, the Ranger® 1800 gives hunters and shooters the distance data needed to make accurate shots. Primary HCD (Horizontal Component Distance) mode displays an angle-compensated distance reading. Easy to use with a clean display and highly intuitive menu, the Ranger 1800 keeps things simple, yet provides a high level of performance.
Fully multi-coated lenses deliver optimal light transmission and o-rings seal the Ranger 1800 for waterproof performance. Can be set to read in yards or meters to accommodate user preference. Ideal for gun hunters, target shooters and bowhunters, the Vortex Ranger 1800 is sure to be a hit—and ensure hits.
Compact, ergonomic and lightweight, the Ranger 1800 is easy to pack or hang around your neck using the included lanyard. The adjustable, utility clip mounted to the body offers an innovative way to clip the unit to a belt, pocket, or other flat edged surface for easy access. Clip can be mounted to right or left side of the unit or completely removed. Runs on common CR2 battery.
Range Reflective
9-1800 yards
Range Deer
9-900 yards
Accuracy
+ / - 3 yards @ 1000 yards
Max Angle Reading
+/- 60 degrees (INC 50)
Magnification
6 x
Objective Lens Diameter
22 mm
Linear Field of View
315 feet/1000 yards
Angular Field of View
6 degrees
Eye Relief
17 mm
Operating Temperature
14°-131°F
Length
3.9 inches
Width
3 inches
Weight
7.7 ounces
OPTICAL FEATURES
Fully Multi-Coated Lenses
Anti-reflective lens coatings provide brighter views.
CONSTRUCTION FEATURES
Waterproof
O-ring seals prevent moisture, dust, and debris from getting inside for withstanding harsh weather conditions.
Rugged Design
Built to handle tough situations. Compact and lightweight.
Rubber Armor
Provides a secure, non-slip grip.
Diopter
Adjusts for precise focus.
Utility Clip
Provides quick, convenient access.
Tripod Adaptable
Compatible with a tripod adapter, allowing use on a tripod or car window mount.
PERFORMANCE FEATURES
HCD
Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS
Line of Sight (LOS) mode displays actual line of sight range.
Scan
This feature displays continual distance readings when panning across a landscape or tracking a moving animal.
Easy-to-use Menu
Intuitive, easy-to-use menus feature a simple, clean illuminated display.
